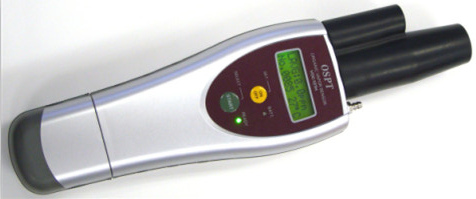

VOC-121H is based on the principle of interference amplification reflectometry for polymer film expansion, and can measure almost all types of VOC gases. The measured specifications are: (1) the specification unit is 1~2,500 ppm (2) the specification unit is 3~7,500 ppm (3) the specification unit is 10~25,000 ppm, and the sampling flow rate is about 200~300ml/min in the sampled flow rate
產品應用領域
“Environmental Management, Water Quality Management, Soil Survey”

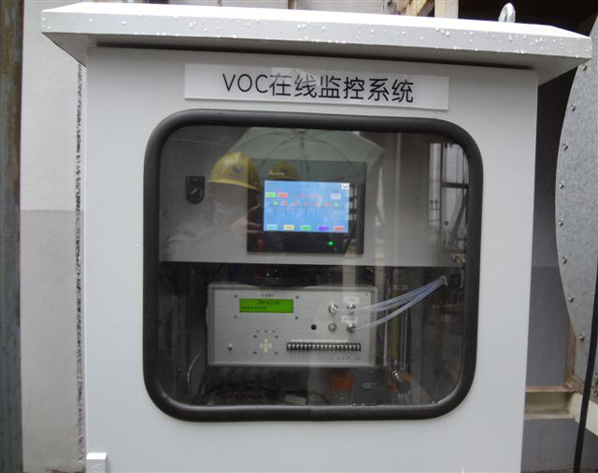

VOC online monitoring system is an integrated system that provides gas monitoring business for the environmental monitoring industry, which can realize the monitoring of the main components and total amount of organic waste gas. The online monitor adopts advanced intelligent component analysis algorithm and flame ion (FID) detection technology to collect, process, analyze, store and upload real-time measurement data of gas through high-precision AD sampling, and monitor the total VOCs concentration, main component concentration and total emission in real time.
Test objects: industrial emissions of organic volatile waste gases, total hydrocarbons (THC) and non-methane total hydrocarbons (NMHX), benzene, dimethylformamide in emission pipelines.
Application Industries: Coating Industry, Gravure Printing, Coating Manufacturing, Organic Chemicals, Tire Manufacturing, Semiconductor Manufacturing, Furniture Manufacturing, Household Appliances, Film Manufacturing, Synthetic Materials.

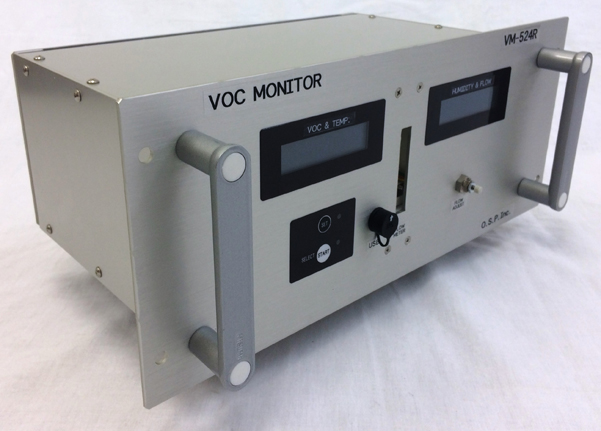

The VM524R monitor is a device that detects the inlet and outlet concentrations of VOC treatment devices, and can continuously monitor the working environment.
The sampling flow rate of the product is 0.5~3L/min, the measurement time is about 10~30 seconds, the detection temperature is 5~50°C, and the power supply adopts AC100V voltage 5A.

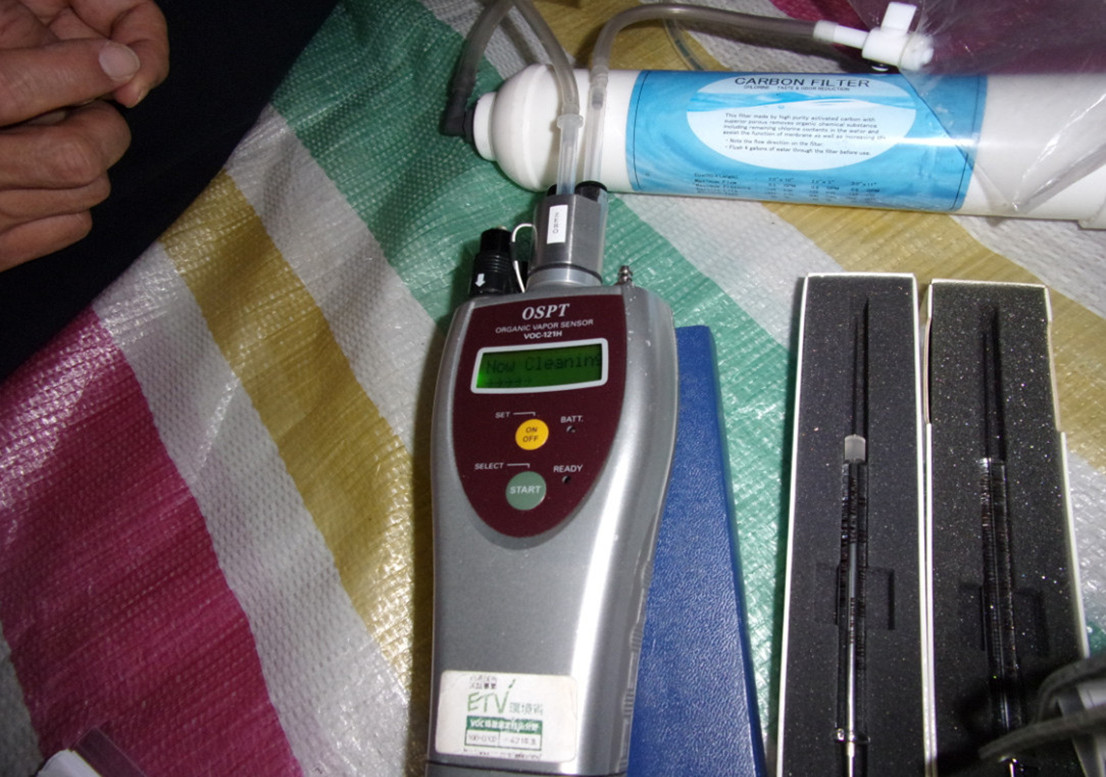

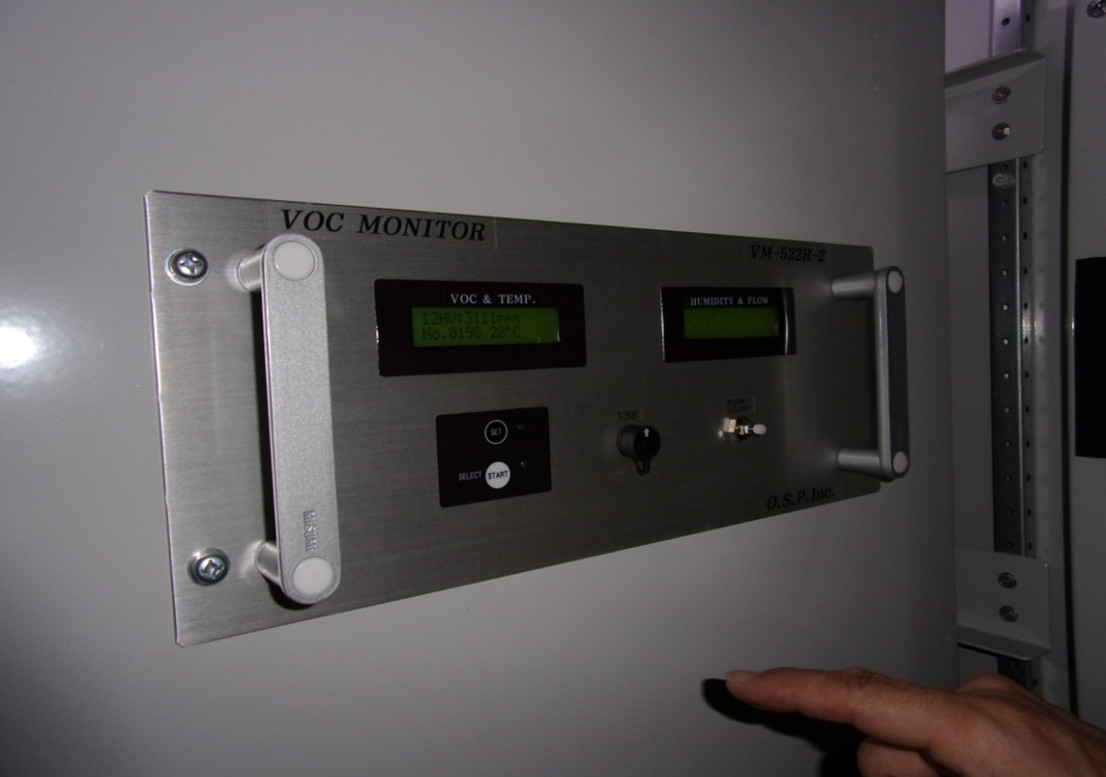

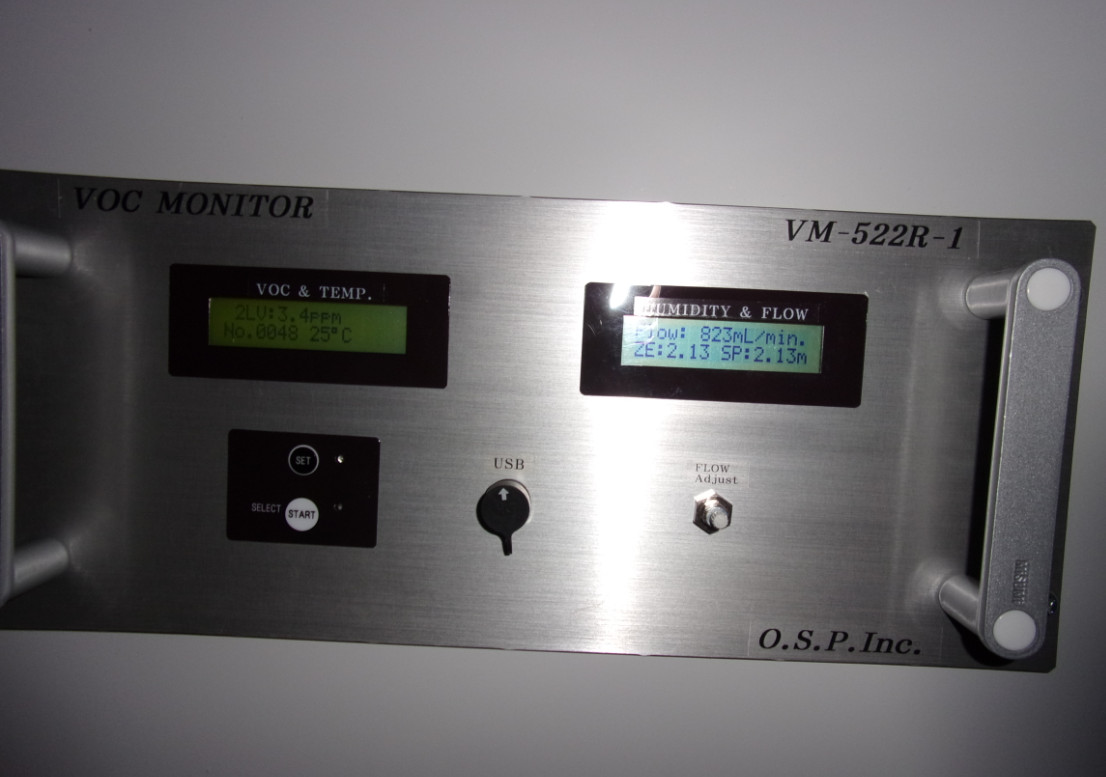

VOC detector application examples
“Interference Amplification Reflection Method for Polymer Film Expansion (IER Method)”
